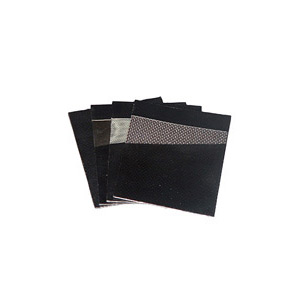

▊ WLT-001 Reinforced Graphite Sheet

This product is formed by mechanically or sticking flexible graphite sheets together with metal plate. It has good compressibility and resilience, excellent sealing property for microscopic surface irrgeularities and long working life. It is mainly used for making cylinder gaskets of engines and punching into all kinds of sealing gaskets.

■ Length: 1500mm;1000mm;500mm

■ Width: 1500mm;1000mm;500mm

■ Thickness:1.0 to 4.0mm

▊ Reinforced Graphite Composite Sheet  WLT-001A

WLT-001A.pdf

WLT-001A Flexible Graphite Sheet with tanged 0.1mm SS316 inserted

This product is made from flexible graphite sheet reinforced with a single insertion of tanged 0.10 mm thick 316 stainless steel. No adhesive is required to bond the graphite layers as the graphite material is fixed to the insert by small, sharp teeth, resulting in a sturdy gasket material which is relatively easy to process and handle.

Applications

Reinforced Graphite composite Sheet is used frequently in flange connections for piping and machinery. Its wide temperature range and excellent stress retention make it extremely suitable for use in steam systems, in the chemical and petrochemical industries, processing industry, etc. Reinforced Graphite composite Sheet is mainly used for making cylinder gaskets of engines and punching into all kinds of sealing gaskets.

Technical data

Temperature: -200ºC to +550ºC (In oxidizing media)

Max. pressure: 140bar

Compressibility: 30-40%

Recovery : >15%

■ Length: 1500mm;1000mm;500mm

■ Width: 1500mm;1000mm;500mm

■ Thickness:1.0 to 4.0mm

▊ Reinforced Graphite Composite Sheet WLT-001B

WLT-001B.pdf

WLT-001B Flexible Graphite Sheet with tanged 0.1mm SS304 inserted

This product is made from flexible graphite sheet reinforced with a single insertion of tanged 0.10 mm thick 304 stainless steel. No adhesive is required to bond the graphite layers as the graphite material is fixed to the insert by small, sharp teeth, resulting in a sturdy gasket material which is relatively easy to process and handle.

Applications

Reinforced Graphite composite Sheet is used frequently in flange connections for piping and machinery. Its wide temperature range and excellent stress retention make it extremely suitable for use in steam systems, in the chemical and petrochemical industries, processing industry, etc. Reinforced Graphite composite Sheet is mainly used for making cylinder gaskets of engines and punching into all kinds of sealing gaskets.

Technical data

Temperature: -200ºC to +550ºC (In oxidizing media)

Max. pressure: 140bar

Compressibility: 30-40%

Recovery : >15%

■ Length: 1500mm;1000mm;500mm

■ Width: 1500mm;1000mm;500mm

■ Thickness:1.0 to 4.0mm

▊ Reinforced Graphite Composite Sheet WLT-001C

WLT-001C.pdf

WLT-001C Flexible Graphite Sheet with tanged carbon steel inserted

This product is made from flexible graphite sheet reinforced with a single insertion of tanged 0.20-0.25mm carbon steel (tinplate). No adhesive is required to bond the graphite layers as the graphite material is fixed to the insert by small, sharp teeth, resulting in a sturdy gasket material which is relatively easy to process and handle.

Applications

Reinforced Graphite composite Sheet is used frequently in flange connections for piping and machinery. Its wide temperature range and excellent stress retention make it extremely suitable for use in steam systems, in the chemical and petrochemical industries, processing industry, etc. Reinforced Graphite composite Sheet is mainly used for making cylinder gaskets of engines and punching into all kinds of sealing gaskets.

Technical data

Temperature: -200ºC to +550ºC (In oxidizing media)

Max. pressure: 140bar

Compressibility: 30-35%

Recovery : >20%

■ Length: 1500mm;1000mm;500mm

■ Width: 1500mm;1000mm;500mm

■ Thickness:1.0 to 4.0mm

▊ Reinforced Graphite Composite Sheet WLT-001D

WLT-001D.pdf

WLT-001D Flexible Graphite Sheet with flat 0.05mm SS316 inserted

This product is made from flexible graphite sheet laminate with one flat stainless steel 316 insertion. The thickness of the stainless steel 316 is 0.05 mm. The graphite sheet is fixed to the insertion by means of a super adhesive layer. This reinforcement makes for a sturdy gasket sheet that is easy to handle, and simple to process into gaskets.

Applications

This products is primarily used for smaller gaskets and gaskets with a narrow land-width such as gaskets for tongue and groove flanges. The material finds many applications in the chemical and petrochemical industries.

Technical data

Temperature: -200ºC to +550ºC (In oxidizing media)

Max. pressure: 140bar

Compressibility: 40-50%

Recovery : >10%

■ Length: 1500mm;1000mm;500mm

■ Width: 1500mm;1000mm;500mm

■ Thickness:1.0 to 4.0mm

▊ Reinforced Graphite Composite Sheet WLT-001E

WLT-001E Flexible Graphite Sheet with metal mesh inserted

This product is made from flexible graphite sheet reinforced with a single insertion of metal mesh.

Applications

Reinforced Graphite composite Sheet is used frequently in flange connections for piping and machinery. Its wide temperature range and excellent stress retention make it extremely suitable for use in steam systems, in the chemical and petrochemical industries, processing industry, etc. Reinforced Graphite composite Sheet is mainly used for making cylinder gaskets of engines and punching into all kinds of sealing gaskets.

Technical data

Temperature: -200ºC to +550ºC (In oxidizing media)

Max. pressure: 140bar

Compressibility: 30-40%

Recovery : >15%

■ Length: 1500mm;1000mm;500mm

■ Width: 1500mm;1000mm;500mm

■ Thickness:1.0 to 4.0mm

▊ WLT-001F Graphite sheet with non-metallic fiber inserted
